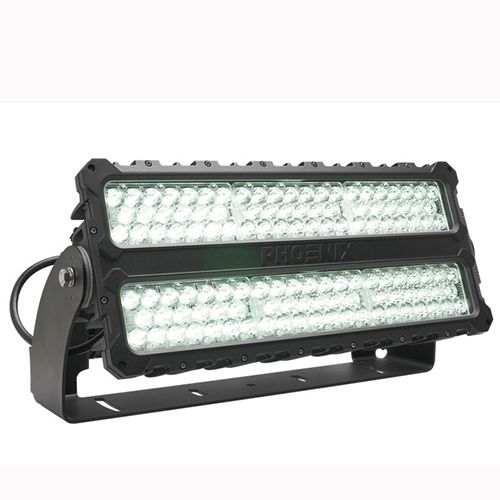

Phoenix ModCom 3 MAX Heavy Duty Floodlight
Phoenix ModCom 3 MAX Heavy Duty Floodlight Hazardous Location Rated
Third-generation floodlight designed to withstand the world's harshest and most demanding environments. Custom-designed, high-temperature optics improve safety, increase efficiency, and maximize operator comfort. Optional Amber LEDs increase visibility and productivity in high-fog, dusty, and snowy conditions. Robust construction ideal for high vibration, high temperature, and hazardous applications.
Special Order Item, please call 314-582-0244 to order.
ETL/cETL Certified to:
UL 1598 Suitable for Wet Locations
UL 1598A Marine Outside Type (Saltwater)
UL 844 Hazardous Location (-40°C to + 50°C)
Class I, Division 2 Groups A, B, C, D
Class I, Zone 2 Groups IIC
T4, 135°C maximum surface temperature
CSA C22.2 No. 250.0
CSA C22.2 No. 137
CE
ABS
IP66
IP67
IP69K
DLC (contact factory)
LM79 and LM80 reports available
FCC Part 15, Subpart B, Class A standards for conducted and
radiated emissions.
Buy American Act (BAA)
Build America Buy America Act (BABA)
Construction: Marine-grade cast aluminum housing
Adjustable powder-coated steel mounting harp
Finish: Black thermoset powder coat 2-step finish
Hardware: Marine grade (316) stainless steel
Lens: Clear, tempered glass
Surge Protection: 20kV (20kA)
Light source:
Up to 15,000 lumens, 121W (LO); 30,000
lumens, 231W (HI); 52,500 lumens, 438W (MAX)
Cool white (50K), neutral white (40K), or Amber
(AM) LEDs
CRI > 70 – standard
Other CCT options available – contact factory
50,000-hour rated life
Weight:
LO – 31.0 lb (14.1 kg)
HI – 39.6 lb (18.0 kg)
MAX – 49.2 lb (22.3 kg)
Warranty: 5 years
