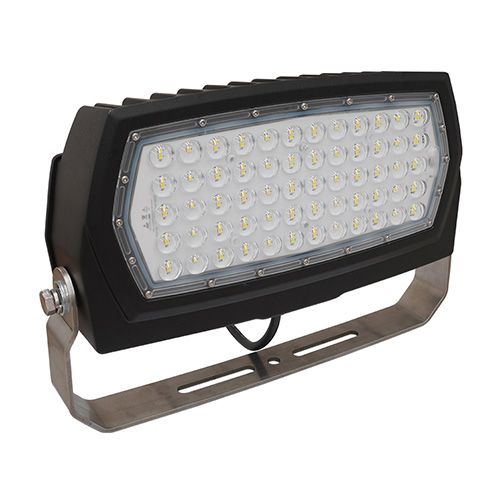

Phoenix Midline Flood 2 (Wide Flood)

Special Order Item, Please Call 314-582-0244 to Order

Phoenix # 010207.201 Midline Flood 2

Wide Flood (115° x 80°)

Marine-rated floodlight ideal for use on terminal yard cranes, tugboats, and pushboats. Customized optics designed for marine deck and flank lighting.

Built by a trusted and experienced manufacturer of marine and port lighting.

Made to withstand the moisture, shock, and vibration of marine environments.

General deck lighting
Embarkation lighting
Deck Winch lighting
Flank lighting
Davits
Lifeboats & life raft stations
Deck-mounted cranes (OSV, PSV)
Port gantry lighting
Logo lighting
Truck lane lighting
Work platform lighting
Small area flood lighting
Tugboats
Push boats
Perimeter lighting

Construction: Marine-grade aluminum castings
316 stainless steel mounting bracket
Finish: Powder coat in black, meets 1000 Hr Salt Fog
test per ASTM B117
Hardware: 316 stainless steel
Lens Impact-resistant polycarbonate lens
Medium flood (MF) and wide flood (WF) optics
Light source: Field adjustable output (8000, 10500, 13000 lumens), up to 90W 5000K LEDs (50K)
50,000-hour rated life
Overload, over-voltage, over-temperature and short-circuit protection
Power source 120-347V, 50-60Hz
Fully potted, isolated driver
Surge protection: 6kV – standard 20kV – optional
Wiring 72.00 inch (1829 mm) cord with pigtail
Ambient operating temperature: -40°C to +55°C
Vibration: 3G per ANSI C136.31
Mounting: Adjustable harp mount
Estimated fixture weight: 5.4 kg (12.0 lb)
Warranty 5 years

• UL 1598 Suitable for Wet Locations
• UL 1598A Marine Outside Type (Saltwater)
• CSA C22.2 No. 250.0
• CE
• IP66
• IK08
• 3G Vibration per ANSI C136.31
• ABS
• FCC Part 15, Subpart B, Class A standards for conducted and
• radiated emissions.
• RoHS compliant
