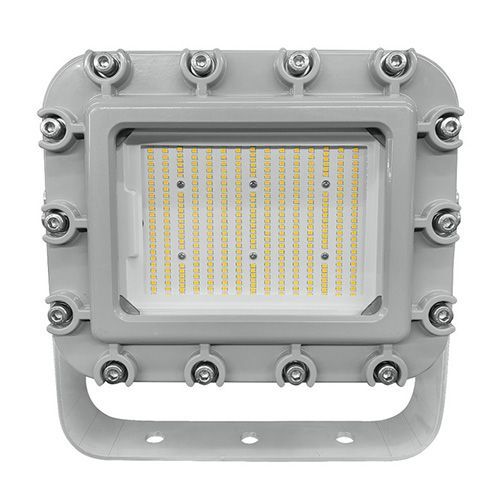

Phoenix Defend Flood 2 HI Series

Special Order Item, please call 314-819-9786 to order

Second-generation HazLoc flood & high-bay designsto withstand the world's harshest environments. Ideal for use in all UL1598A marine and UL844 hazardous locations.
Consists of marine-grade components for superior corrosion resistance
Versatile fixture with various color temperatures, optics, voltage & mounting options
Construction: Marine-grade cast aluminum housing
316 stainless steel, adjustable mounting harp
Finish-Gray thermoset powder coat
Hardware: 316 stainless steel external hardware
Lens Clear, tempered glass

UL/cUL Certified to:
• UL 1598 Suitable for Wet Locations
• UL 1598A Marine Outside Type (Saltwater)
• UL 844 Hazardous Locations
Class I, Division 1 Groups C, D
Class I, Division 2 Groups A, B, C, D
Class II, Division 1 Groups E, F, G
Class II, Division 2 Groups F, G
Class III
IP66
IK10
ABS (pending)

Light source
14,000 lumens – 100W
28,000 lumens – 200W
CRI ≥ 70
CCT 5000K (50K), 4000K (40K), and 3000K
(30K)
100,000-hour rated life
Power source
120-277V, 50/60Hz or 277-480V, 50/60Hz
1-10V dimming capability
6kV surge protection
Wiring 3 x 3/4 inch NPT openings
Ambient
operating
temperature
DFN2-HI-100: -40°C to +65°C (T4A)
DFN2-HI-200: -40°C to +45°C (T4)
Salt spray tested to ASTM B117 for 1000 hours
Mounting 316 stainless steel mounting bracket – standard
Ceiling, wall, or pendant mount
Weight 39.5 lb (17.9 kg)

Warranty 5 years
